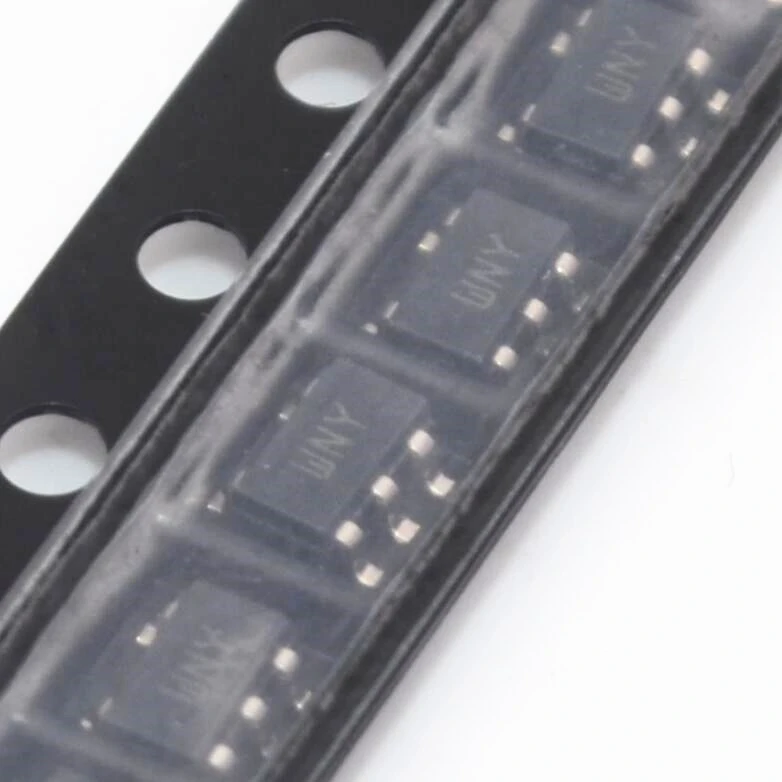

STWD100NYWY3F
Indique la cantidad, la fecha requerida y los requisitos de documentación. La disponibilidad y las condiciones de suministro se confirman durante la cotización.
Solicitar este componente ↗Información del producto
Features
Current consumption 13 μA typ.
Available watchdog timeout periods are 3.4 ms, 6.3 ms, 102 ms and 1.6 s
Chip enable input
Open drain or push-pull WDO output
Operating temperature range: –40 to plus 125 degree
Package SOT23-5, SC70-5 (SOT323-5)
ESD performance
– HBM: 2000 V
– RCDM: 1000 V
Applications
Telecommunications
Alarm systems
Industrial equipment
Networking
Medical equipment
UPS (uninterruptible power supply)
Description
The STWD100 watchdog timer circuits are self-contained devices which prevent system failures that are caused by certain types of hardware errors (non-responding peripherals, bus contention, etc.) or software errors (bad code jump, code stuck in loop, etc.).
The STWD100 watchdog timer has an input, WDI, and an output, WDO. The input is used to clear the internal watchdog timer periodically within the specified timeout period, twd. While the system is operating correctly, it periodically toggles the watchdog input, WDI. If the system fails, the watchdog timer is not reset, a system alert is generated and the watchdog output, WDO, is asserted.
The STWD100 circuit also has an enable pin, EN, which can enable or disable the watchdog functionality. The EN pin is connected to the internal pull-down resistor. The device is enabled if the EN pin is left floating.
